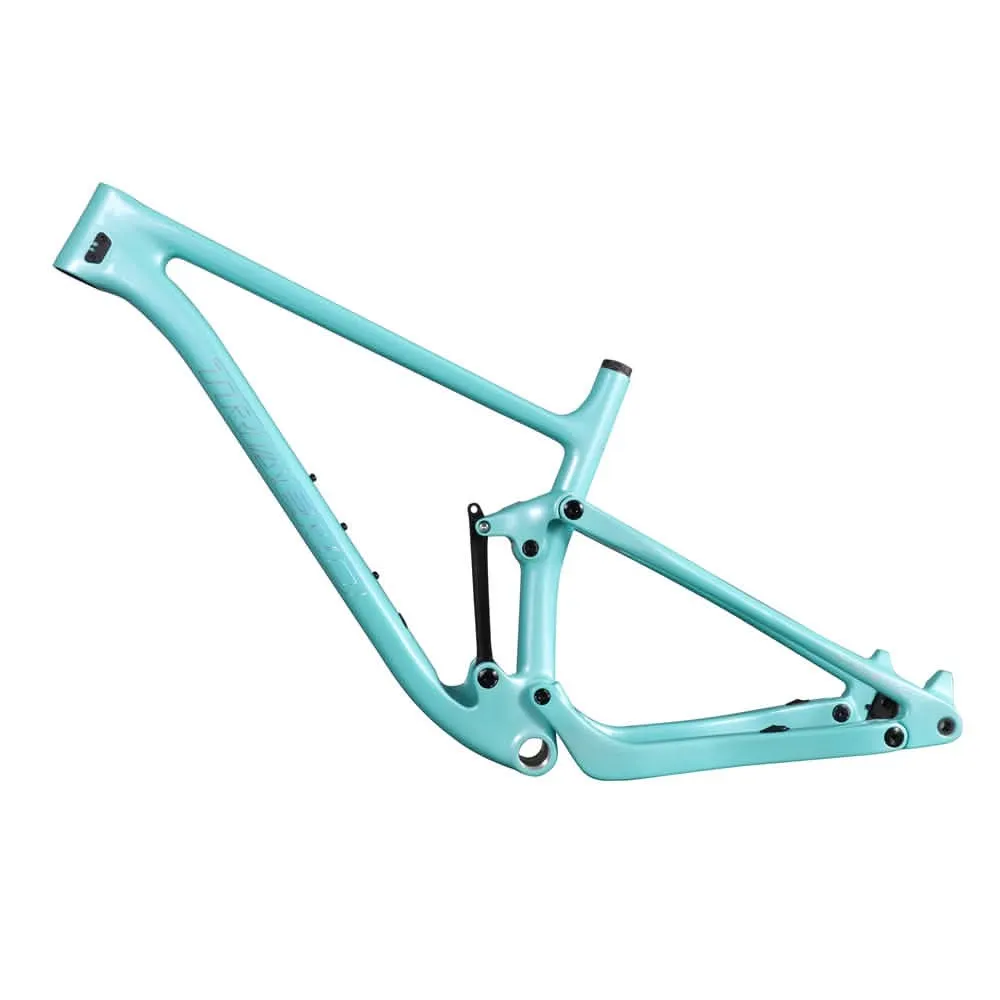

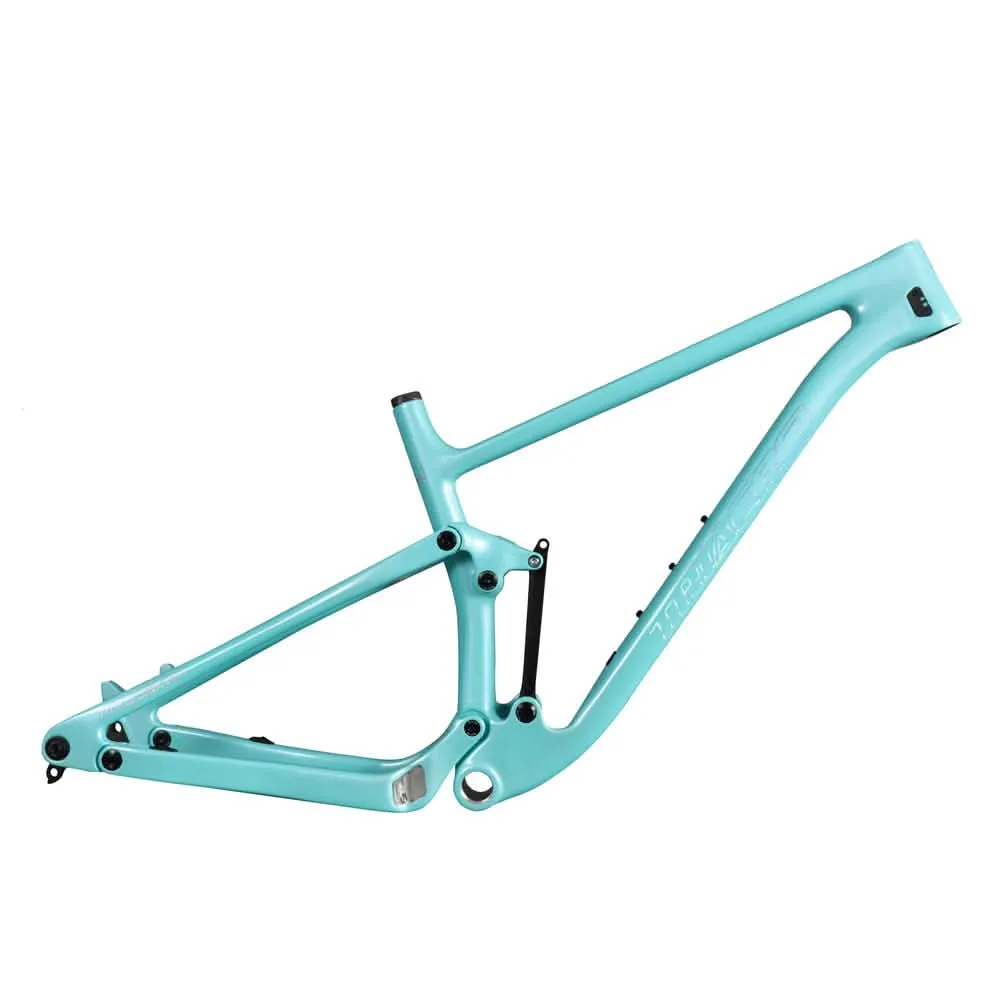

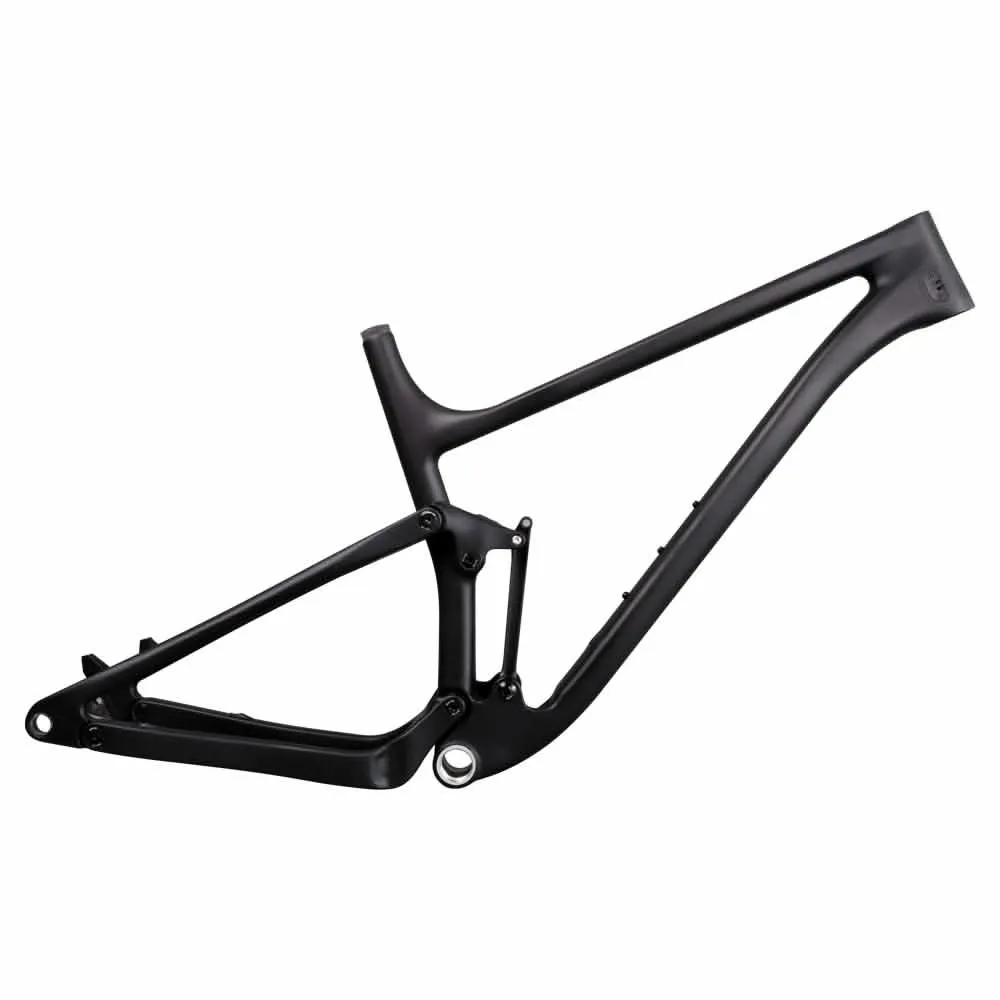

The Best XC full suspension MTB Boost frame S3
XC Full Suspension MTB Bike S3 is the latest cross-country bike frame from ICAN Cycling in 2021, which has perfect performance and features.

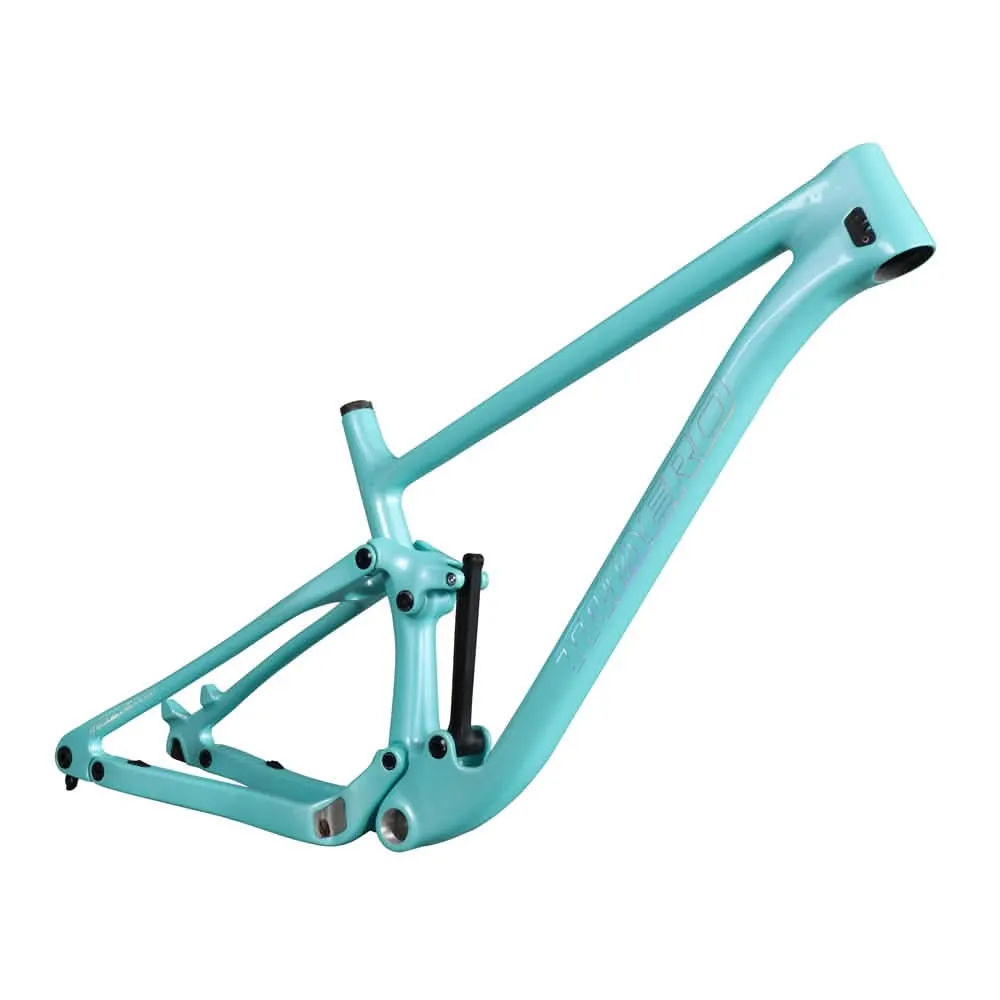

1. Full suspension carbon 29er mountain bike frameset, weighing 2280 grams.

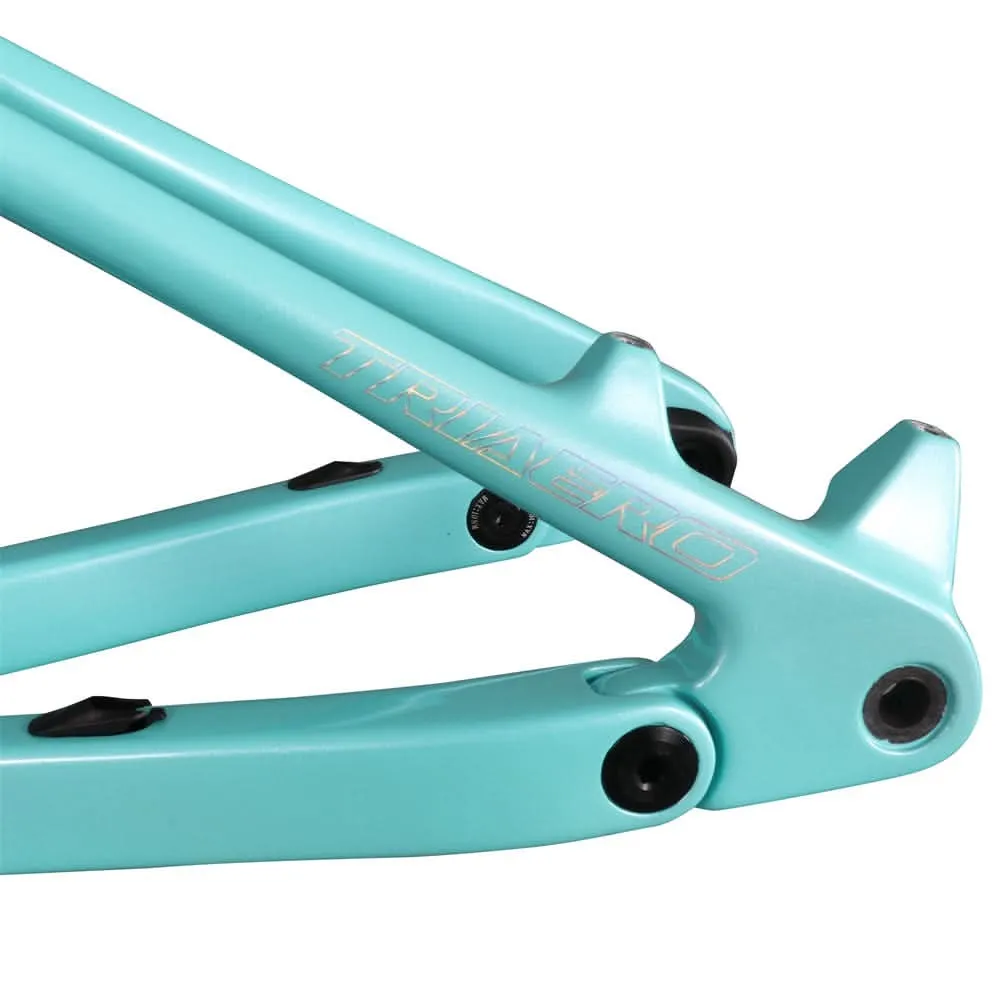

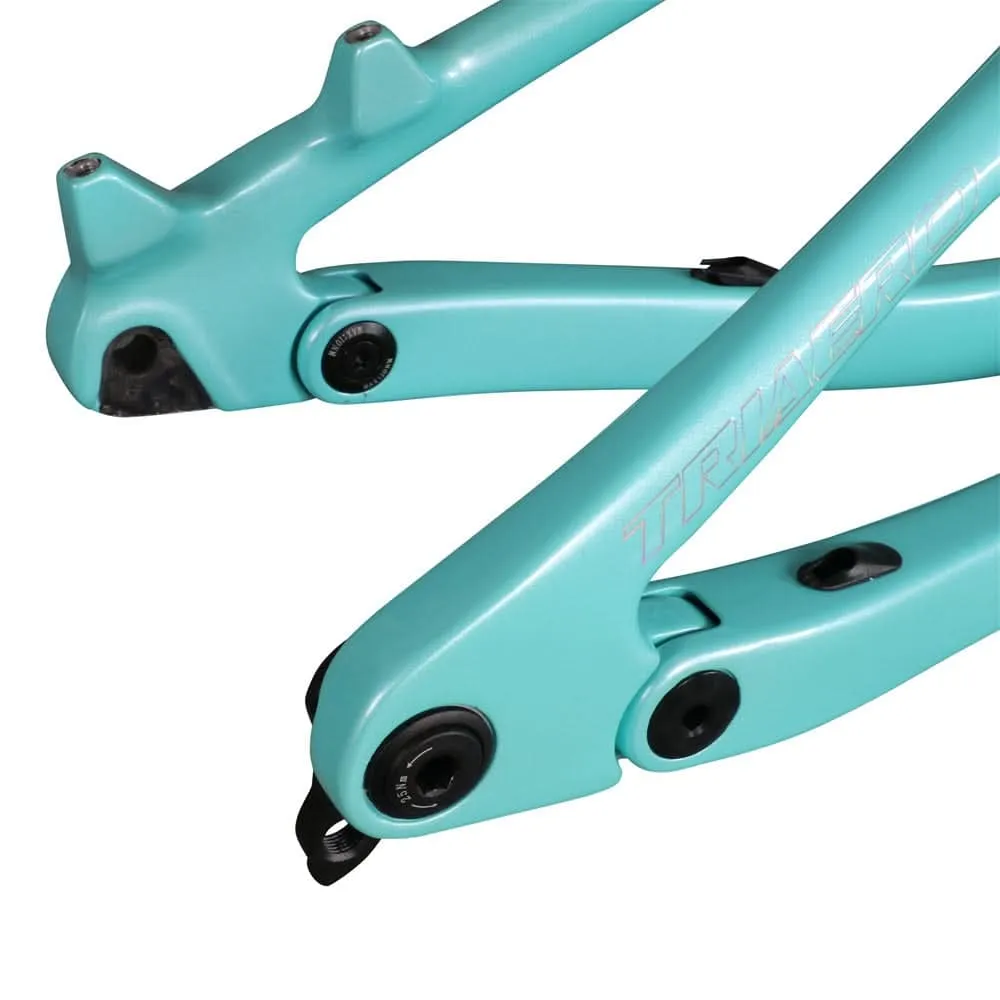

2. The compact rear triangle has a shock-absorbing chain.
3. The rear shock absorber is 165*40mm

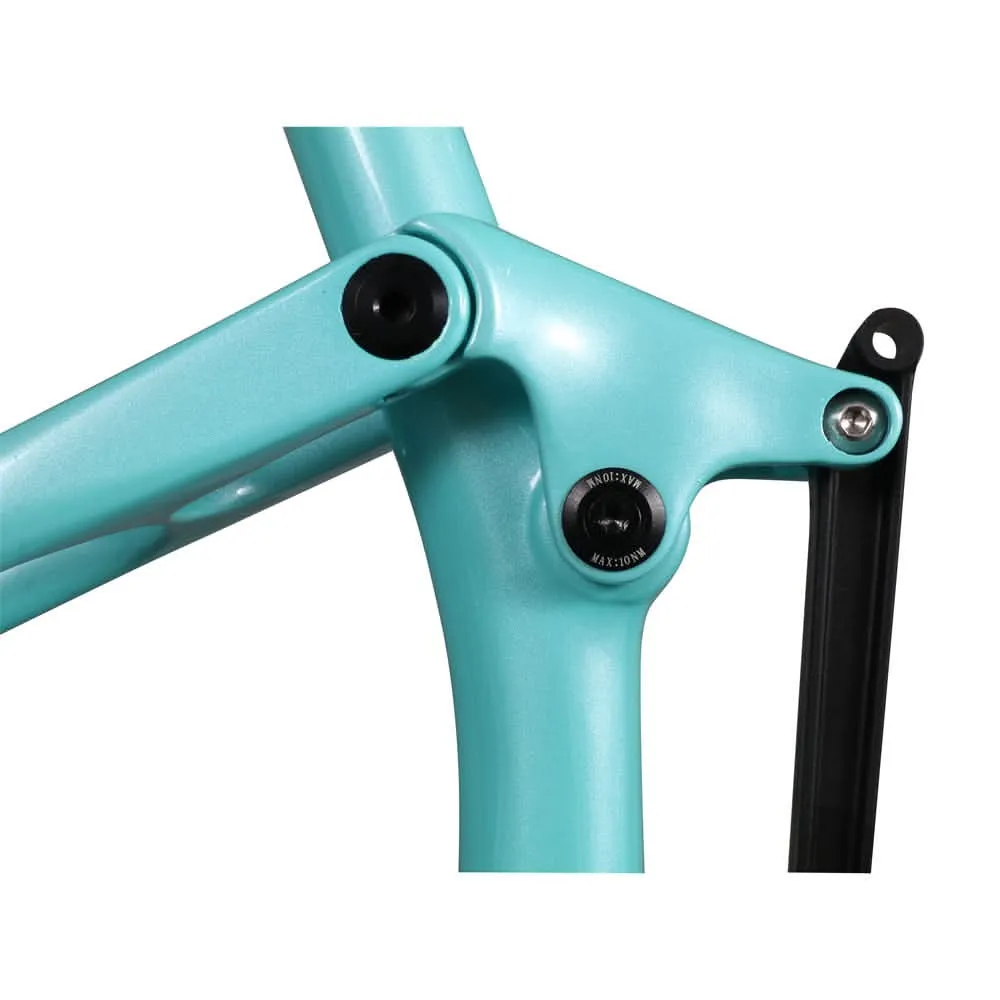

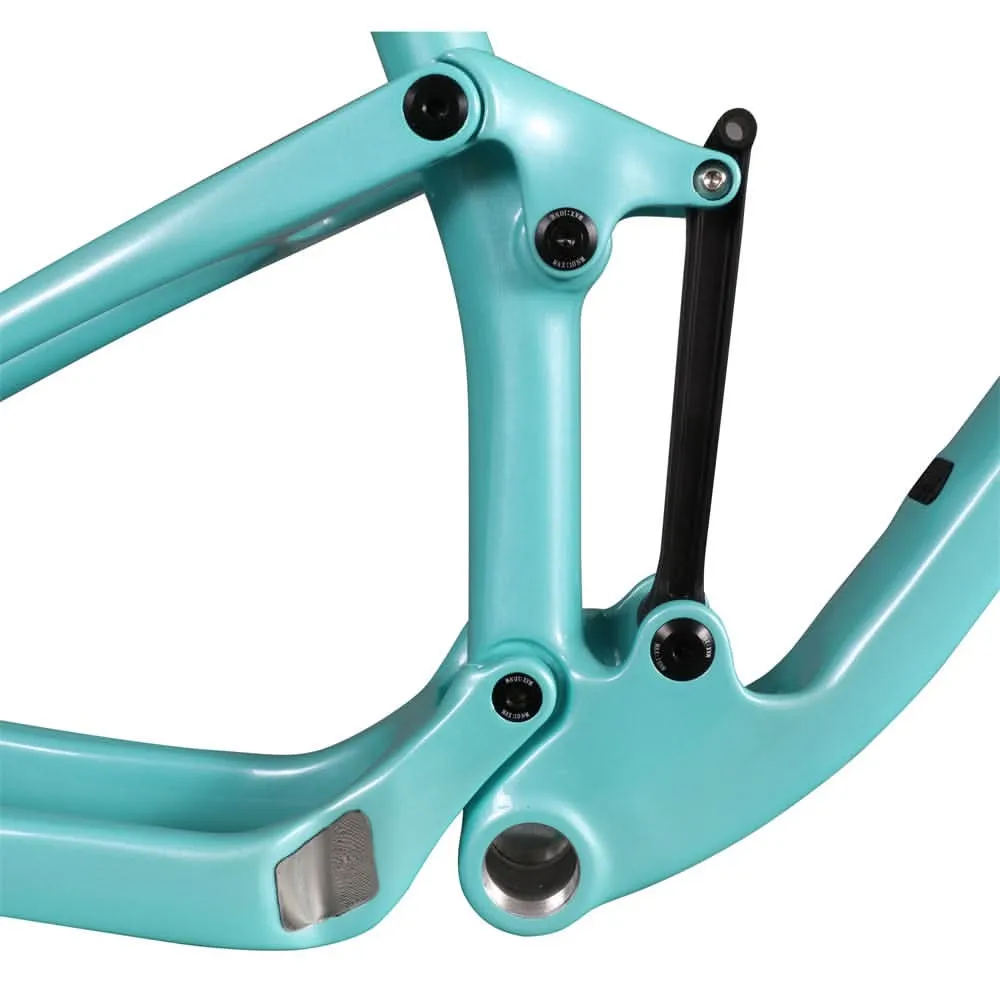

4. Three-point joint damping geometry.

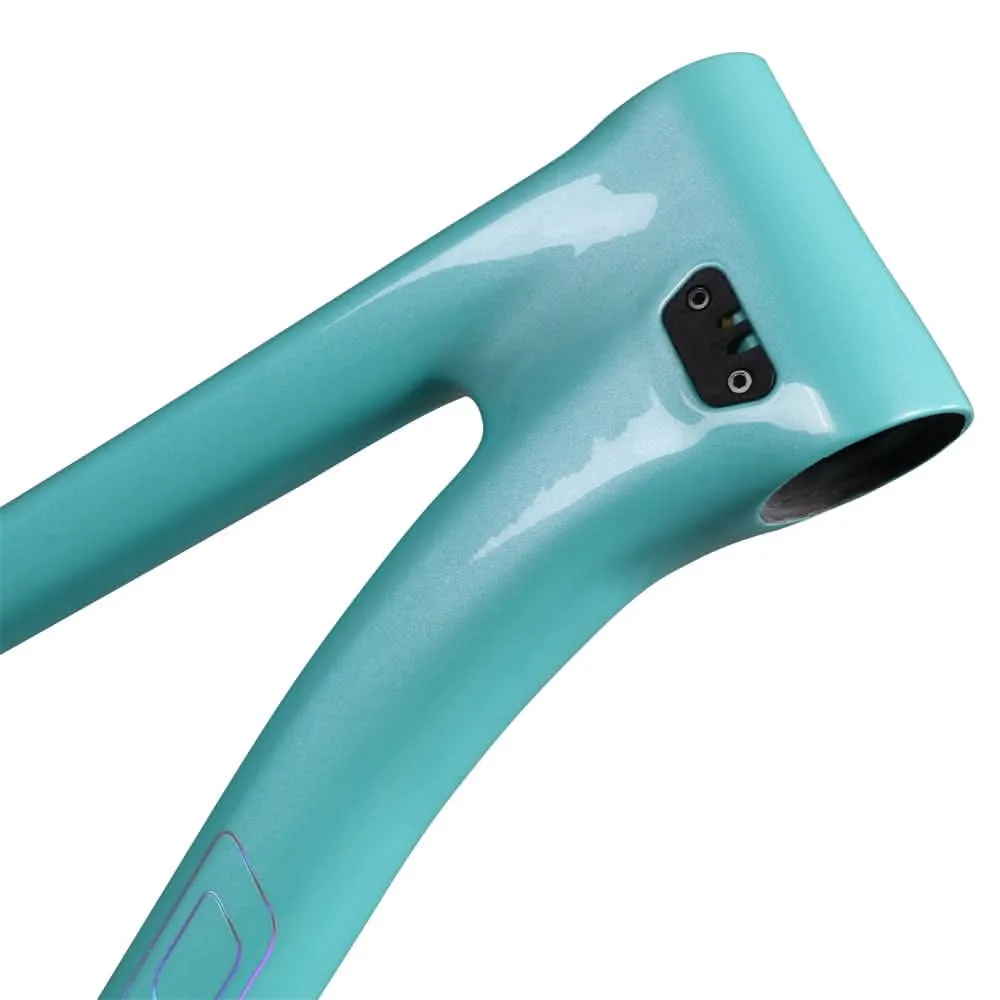

5. Tapered head tube design.
"Trunnion mount: 8*30mm/54*M10 screw or 54*30mm."
As long as you fit a trunnion mount shock you shouldn't need any other hardware.
The Features Of XC Full Suspension MTB Bike S3
Material | 100% full toray carbon fiber |
|---|---|
| Frame Model | Cross Country Bike Boost |
| Weave | UD Matt/Painting |
| Available Size | S/M/L/XL |
| Design Wheel/Tire Size | 27.5"*2.8" or 29"*2.35" |
| Travel | 100mm |
| Rear Rock travel | 165(length)*40mm(travel） |
| Headset-Upper | 1-1/8" |
| Headset-Lower | 1-1/2" |

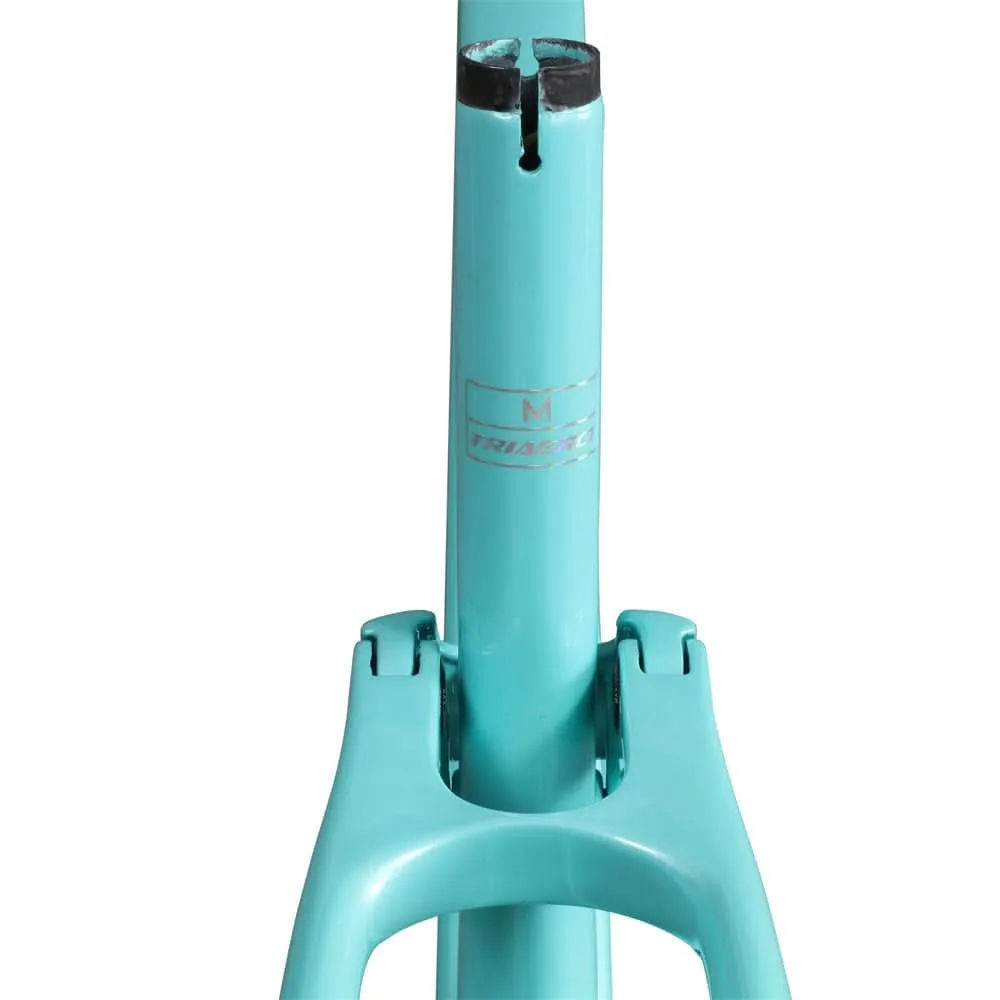

| Seatpost | 31.6mm |
| Max chainring: | 36T |
| Bottom Bracket | BSA |
| Rear Spacing | 148 x 12mm |
| Bottle Mounts | 1 per frame |
| Disc front and rear | 160-180mm |
| Frame Weight | 2280 -20g |
| maximum insert length of the seatpost | 150mm 180mm 230mm 280mm |
When we choose a cross-country (XC) , stiffness, strength and comfort are the factors we need to consider. Obviously, if you need to ride downhill or all-mountainously, a full suspension XC mountain bike is more suitable for you than a hardtail bike.
The fact is that buying a high-end is not cheap. If you are an experienced racer, you can assemble a full suspension xc mountain bike by yourself. I suggest you buy a full suspension carbon fiber mountain bike frame and wheels separately, which It will greatly reduce your cost and be able to feel fun because he will be like your child.
We all know that designing and riding a full-suspension mountain bike frame is not easy, especially for novices who are downhill. Safety is always our top priority, and it is also our basic rule for constructing each framework. This year, we will update the MTB frame to a new level. With the mature technology of Toray T800 T1000 carbon fiber, we can create a stronger and stronger frame.
This complete suspended is not light, weighing 2280 grams, but you will see a lot of safety details on this frame!
